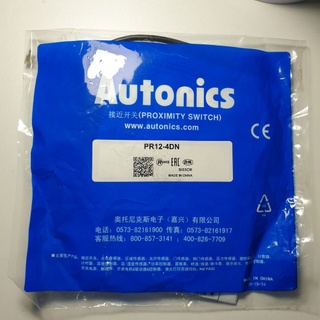

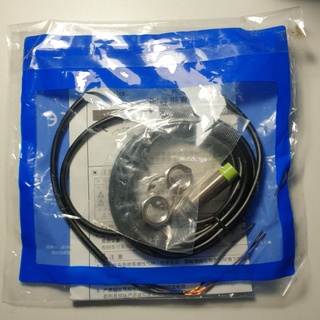

100% Original Autonics PR12-4DN Proximity Switch Sensor

PRODUCT DESCRIPTION ✔Condition: New ✔Brand: Autonics ✔Model: PR12-4DN ✔Wire type and power: DC 3-wire type 12-24VDC ✔Sensing side diameter: M12 ✔Sensing distance: 4mm ✔Installation: Non-flush ✔Standard sensing target: 12×12×1mm(iron) ✔Response frequency: 500Hz ✔Current specification: Current consumption: Max. 10mA ✔Control output: NPN Normally Open ✔Material: Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC). ✔Cable Standard/material: Standard cable ✔Protection structure: IP67(IEC standard) ✔Body length: Standard type ✔Environment_Ambient temperature: -25 to 70°C, storage: -30 to 80°C ✔Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH ✔Hysteresis(distance): Max. 10% of sensing distance ✔Residual voltage: Max. 1.5V ✔Weight: Approx.: 84g(approx. 72g) ✔Made in Korea Features ▪ Cylindrical type proximity sensor ▪ Improved noise resistance with dedicated IC ▪ Integrated surge protection circuit ▪ Integrated overload and short protection circuit(DC 2 wire, 3 wire type) ▪ Integrated reverse polarity protection circuit (DC 3 wire type) ▪ Long life cycle, high reliability, and simple operation ▪ Red LED status indication ▪ Protection structure IP67 (IEC standard) ▪ Replaceable for micro switches and limit switches For inquiries, message us directly. WE ACCEPT GCASH PAYMENT 100% GOOD CONDITION #BRANDNEW #100%ORIGINAL&QUALITY #AUTONICS For more information, you can direct message us.
